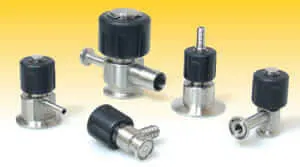

Sample Valves-SV2 – Top Line
Pricing and availability on request. Call (205) 661-0372 or send a quote request and we'll get back to you.
Right Angle & In-Line Type Standard Features:
- 316L SS wetted part construction
- Standard finish: 20RA ID (SF1) / 32RA OD
- Replaceable Tapered FDA/USP Class VI PTFE stem for positive closure
- FDA/USP class VI viton o-ring stem seal
- Positive open stop to prevent accidental stem removal during operation
- Fully autoclaveable without dissassembly
- Thermoplastic black ultem operator nut
- Full material traceability
Right Angle & In-Line Type Optional Features:
- Upgraded internal finish to 20RA W/ EP (SF5) OR 15RA W/ EP (SF4)
- Alternate valve material: hastelloy C276
- FDA/USP class VI EPDM o-ring stem seal
- Alternative end connections upon request
Right Angle & In-Line Type Service Conditions:
- Maximum operating temperature: 300° F
- Maximum operating pressure: 400 PSIG
- Maximum SWP:35 PSIG SWP @ 280° F
